Multi-Conveyors / MDT-L / TW

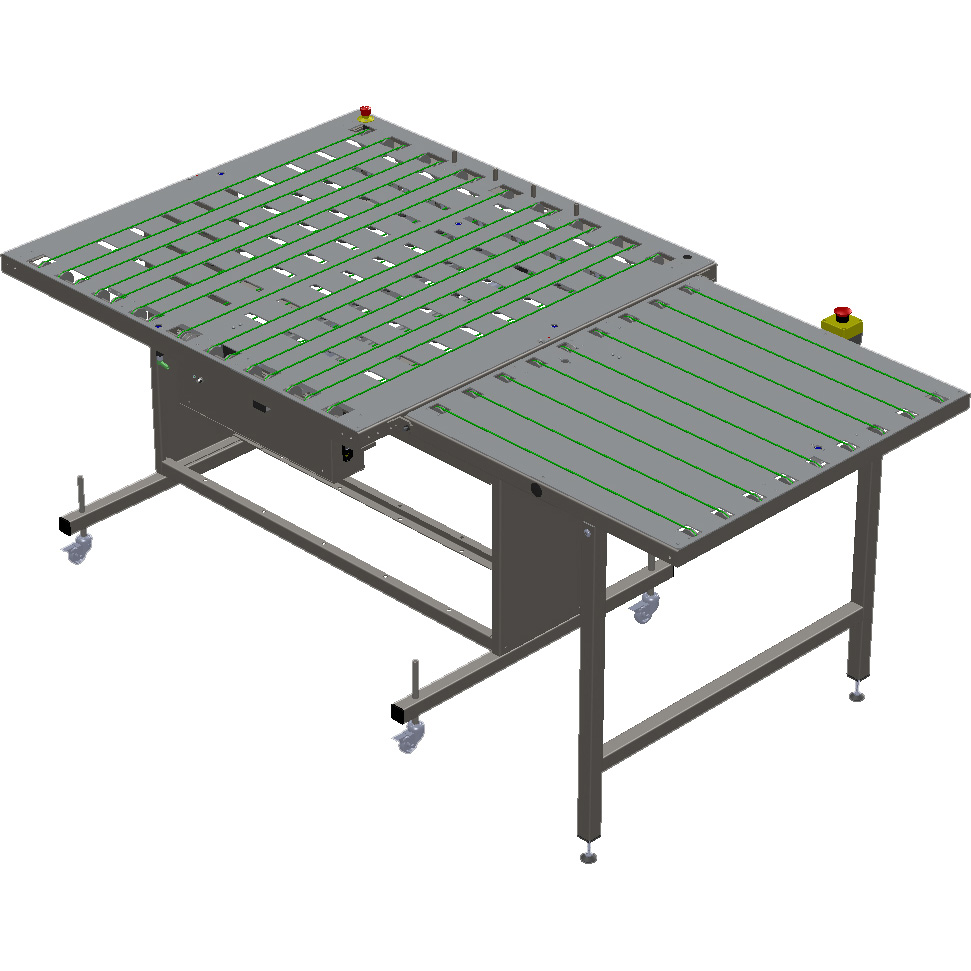

MDT480L

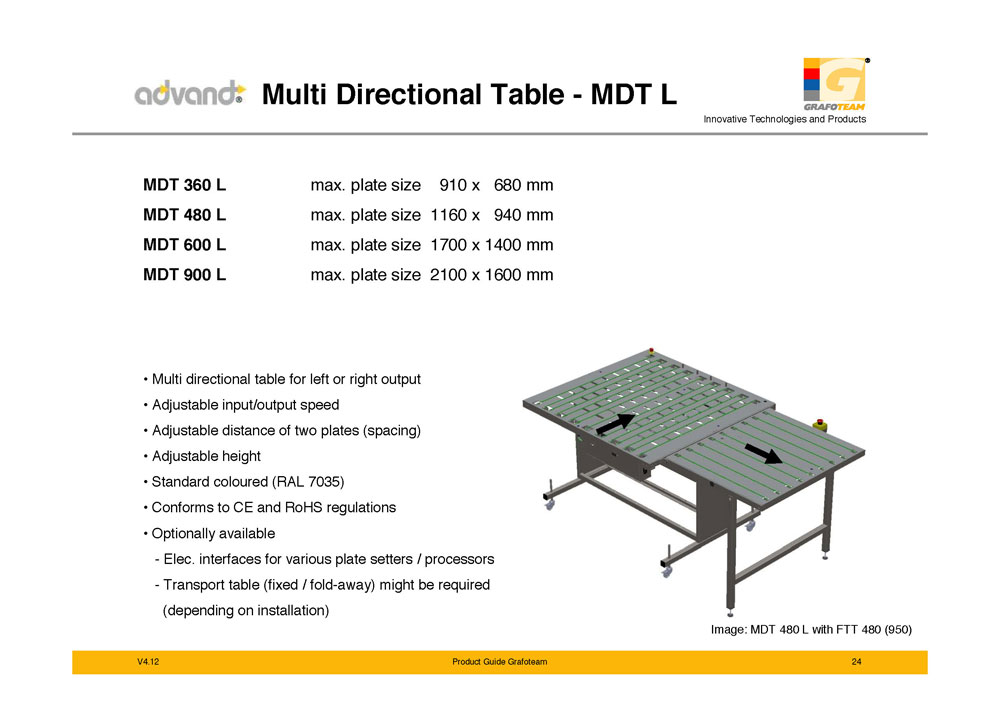

 Multi Directional Table - MDT-L  Description

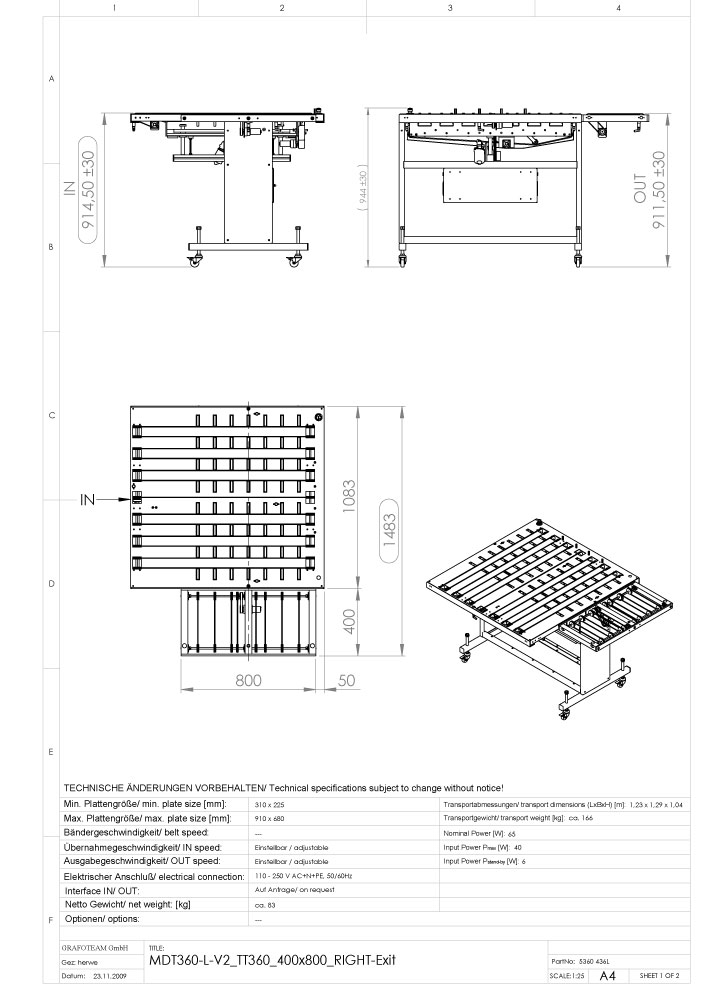

 MDT 360 L, max plate size 910 x 680 mm  Technical Drawing
 MDT 480 L, max plate size 1160 x 940 mm  Spare Parts
 MDT 600 L, max plate size 1700 x 1400 mm
 MDT 900 L, max plate size 2100 x 1600 mm

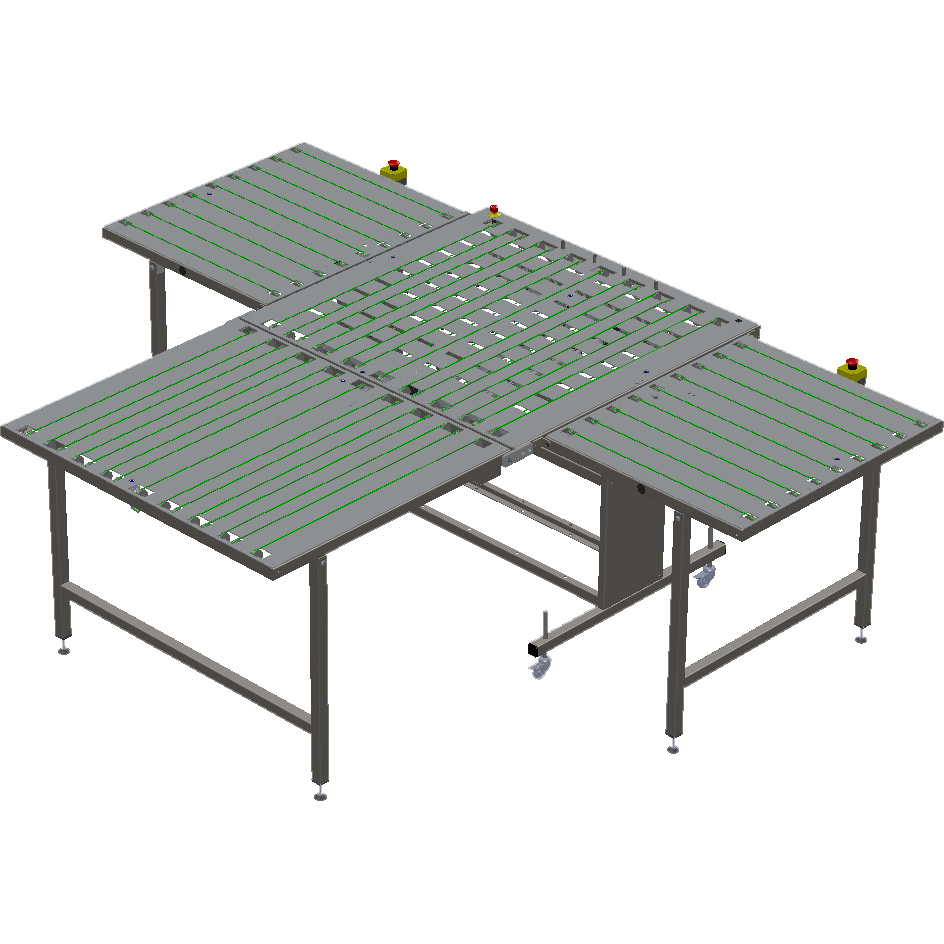

MDT480TW

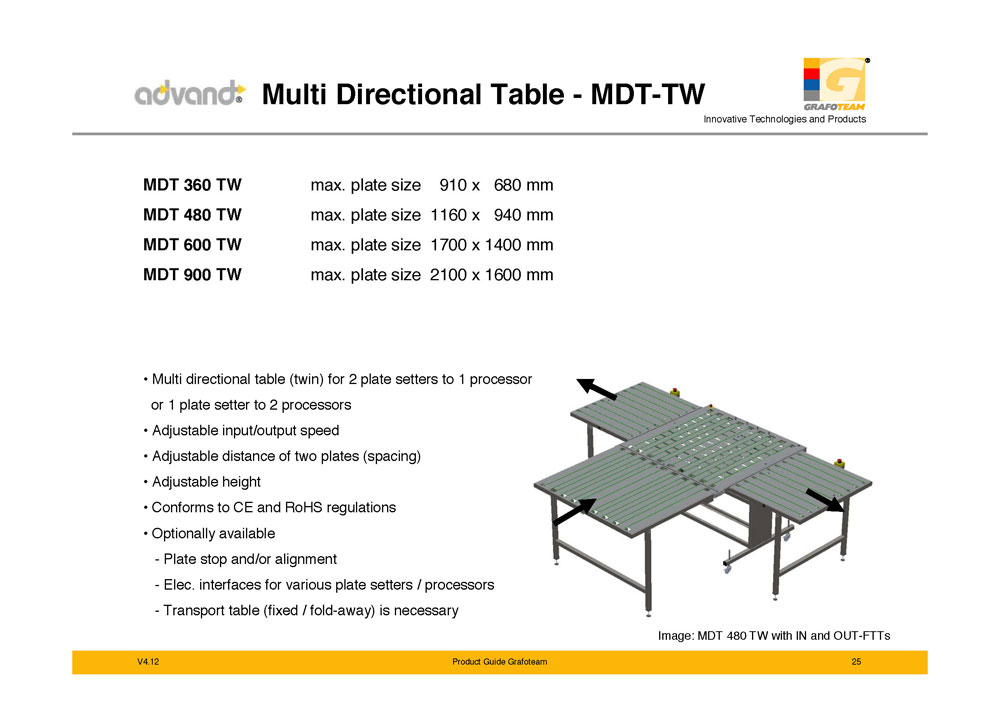

 Multi Directional Table - MDT-TW  Description

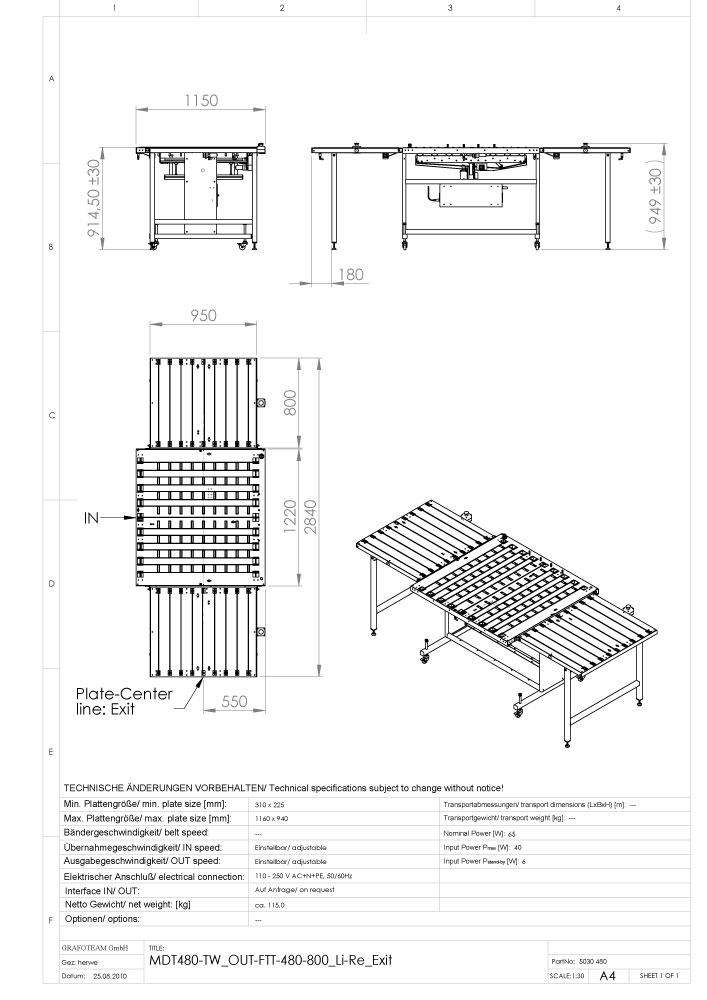

 MDT 360 TW, max plate size 910 x 680 mm  Technical Drawing
 MDT 480 TW, max plate size 1160 x 940 mm  Spare Parts
 MDT 600 TW, max plate size 1700 x 1400 mm
 MDT 900 TW, max plate size 2100 x 1600 mm

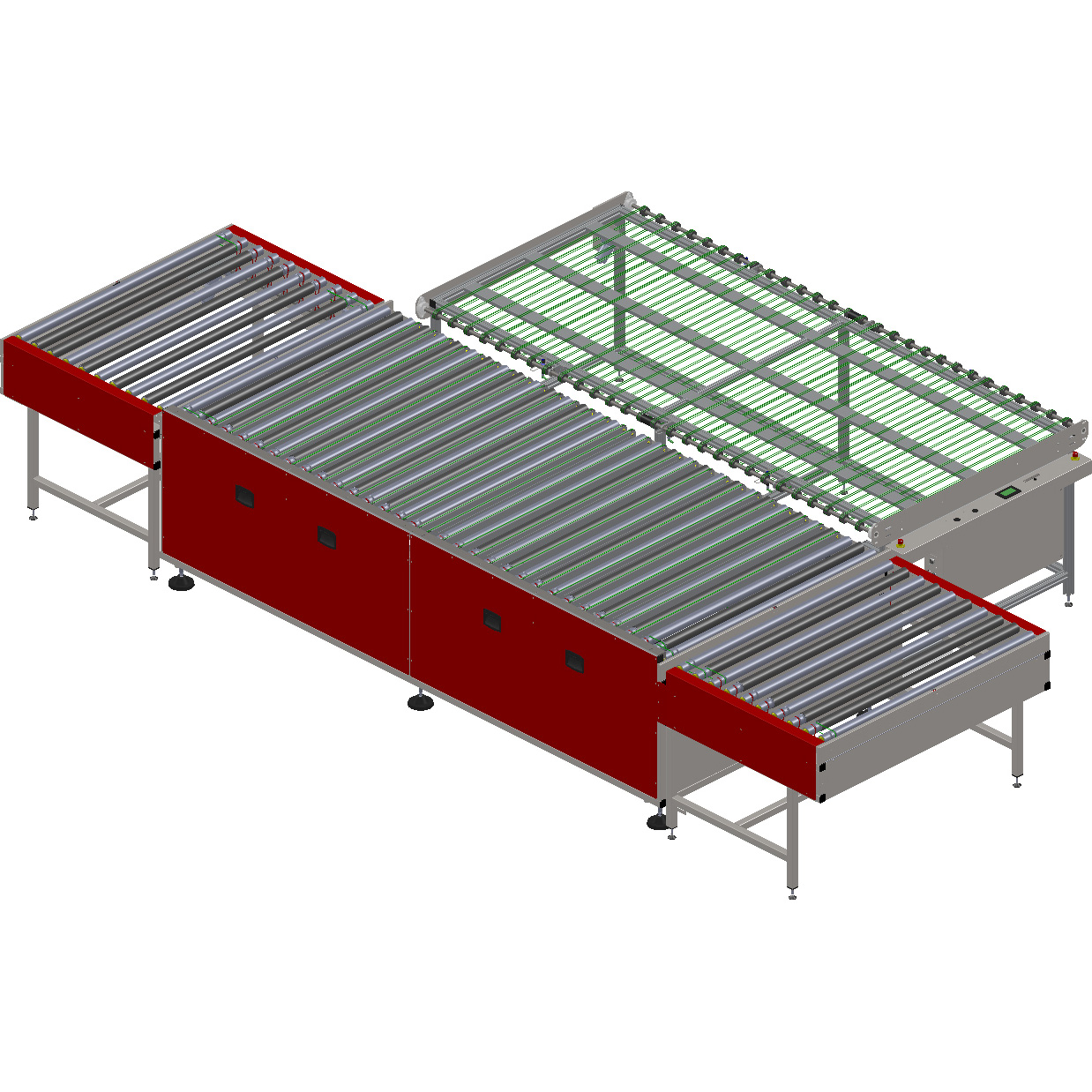

MDT96xxxTW

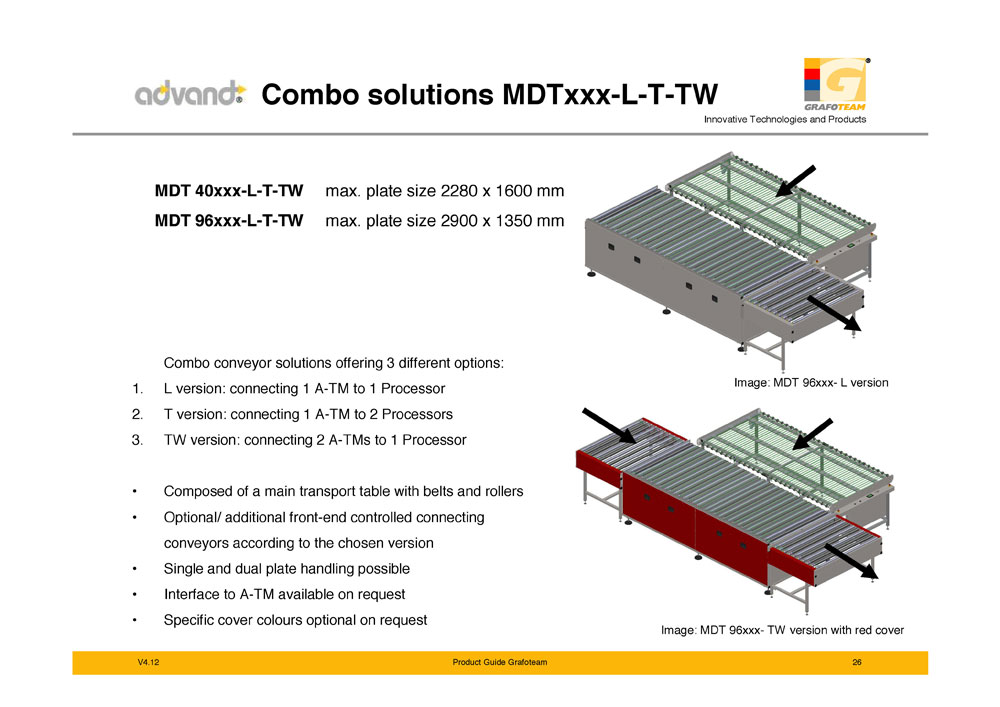

 Combo Solutions - MDTxxx-L-T-TW  Description
 MDT 40xxx L T TW, max plate size 2280 x 1600 mm  Technical Drawing
 MDT 96xxx L T TW, max plate size 2900 x 1350 mm  Spare Parts
