Straight Conveyors / MDT / STR / CC

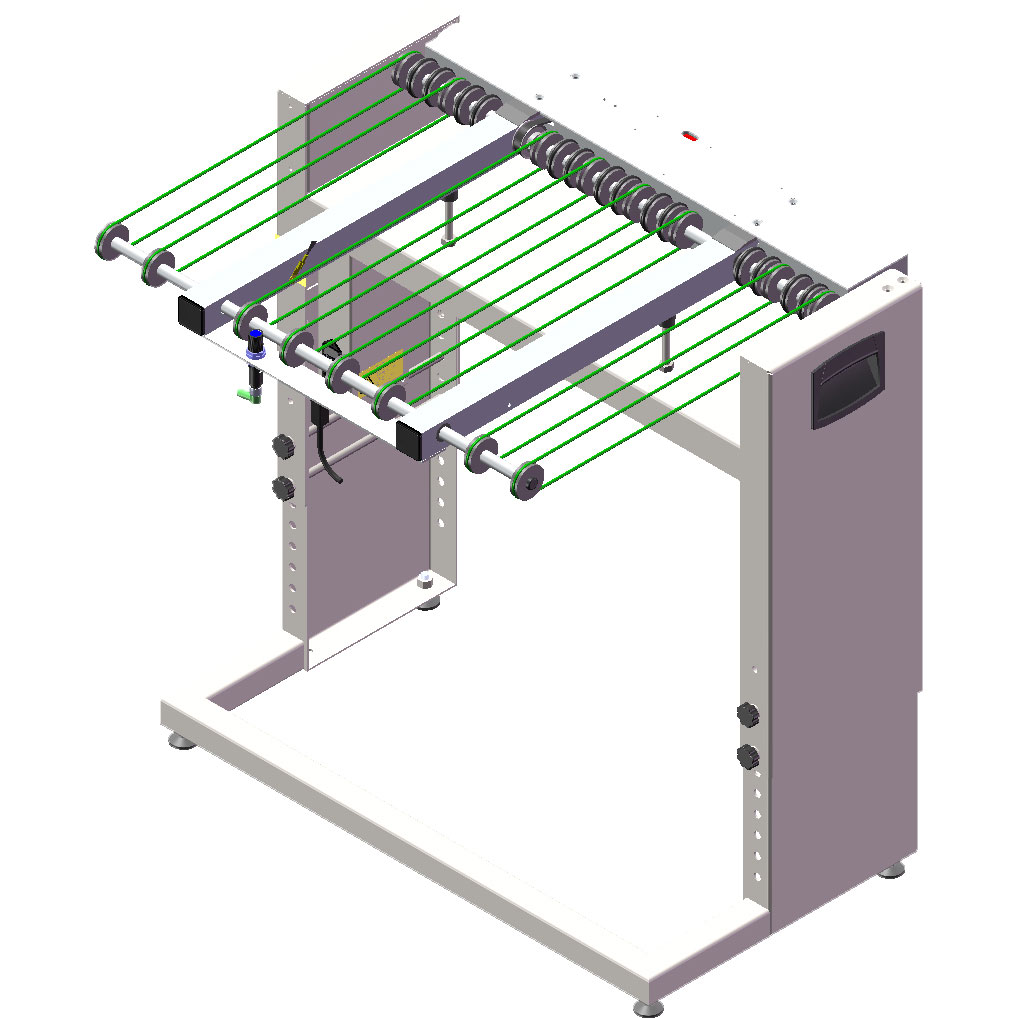

MDT260C65

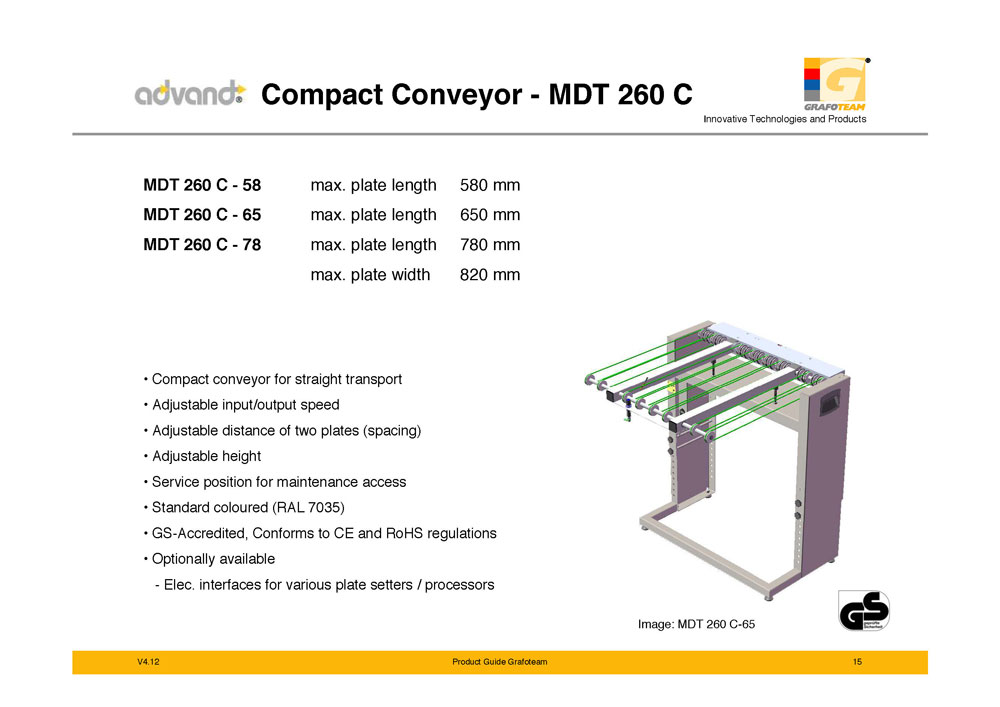

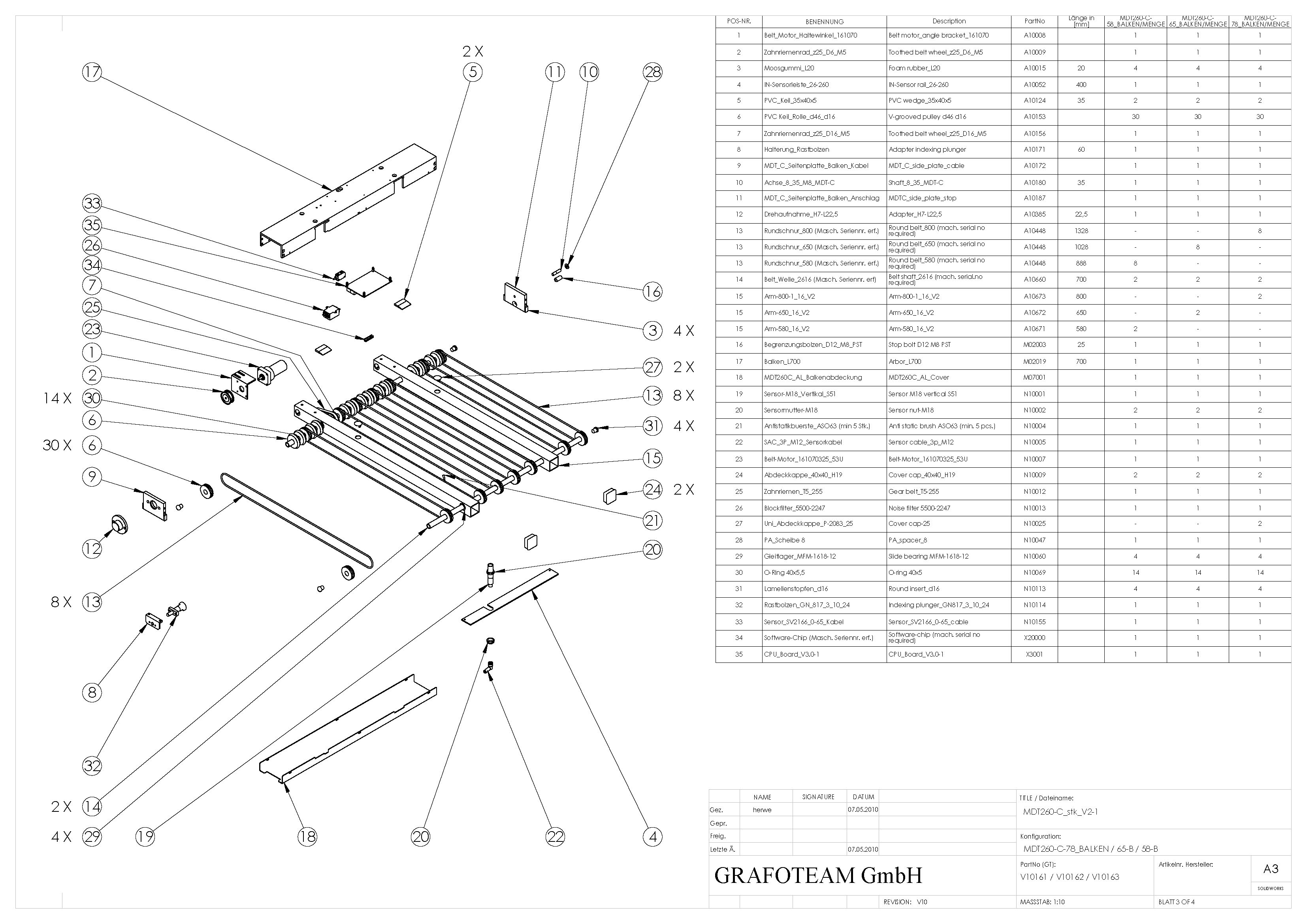

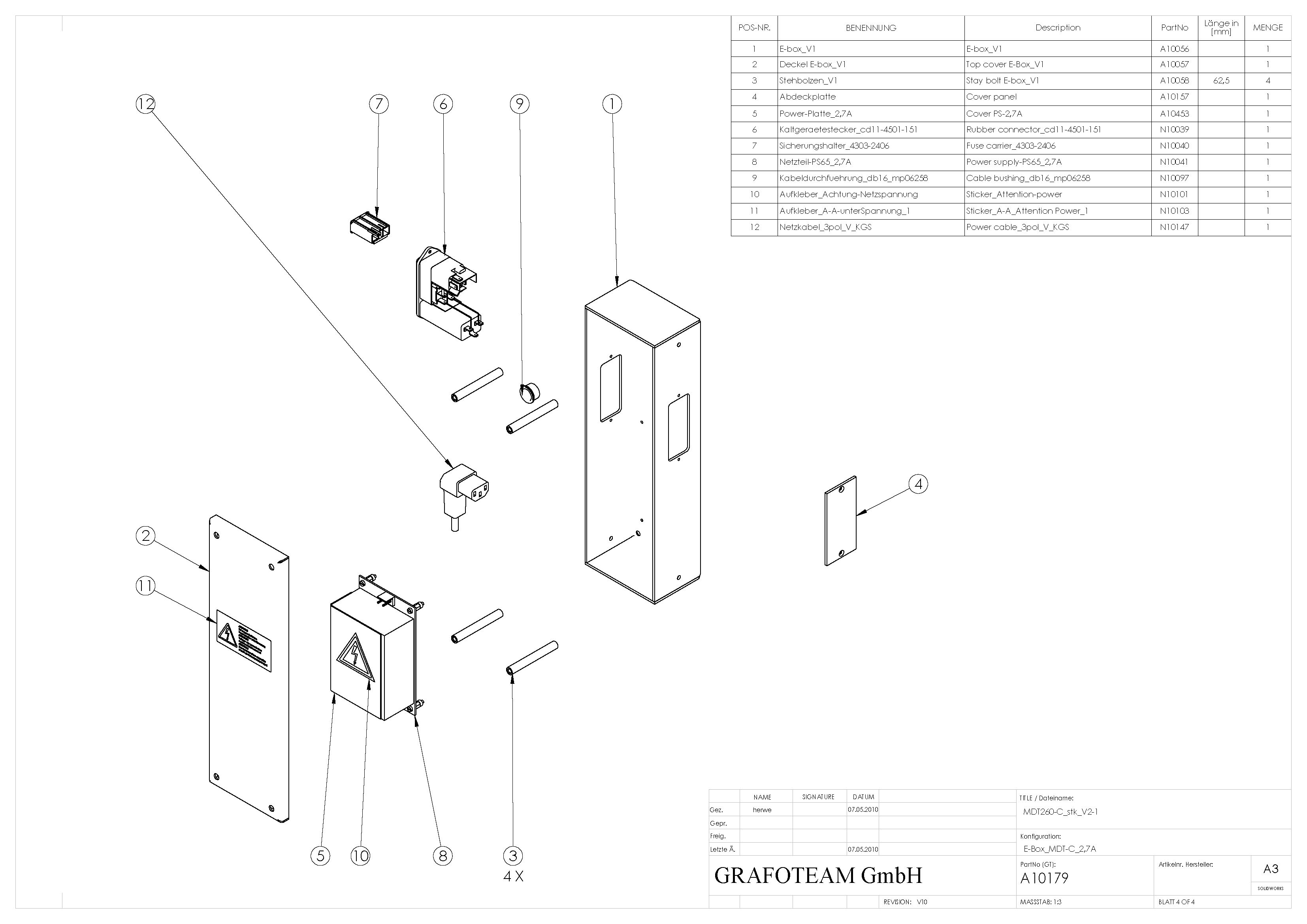

 Compact Conveyor - MDT 260 C  Description
 MDT 260 C - 58, max. plate length 580 mm  Technical Drawing
 MDT 260 C - 65, max. plate length 650 mm  Spare Parts 1 2
 MDT 260 C - 78, max. plate length 780 mm

 max. plate width 820 mm

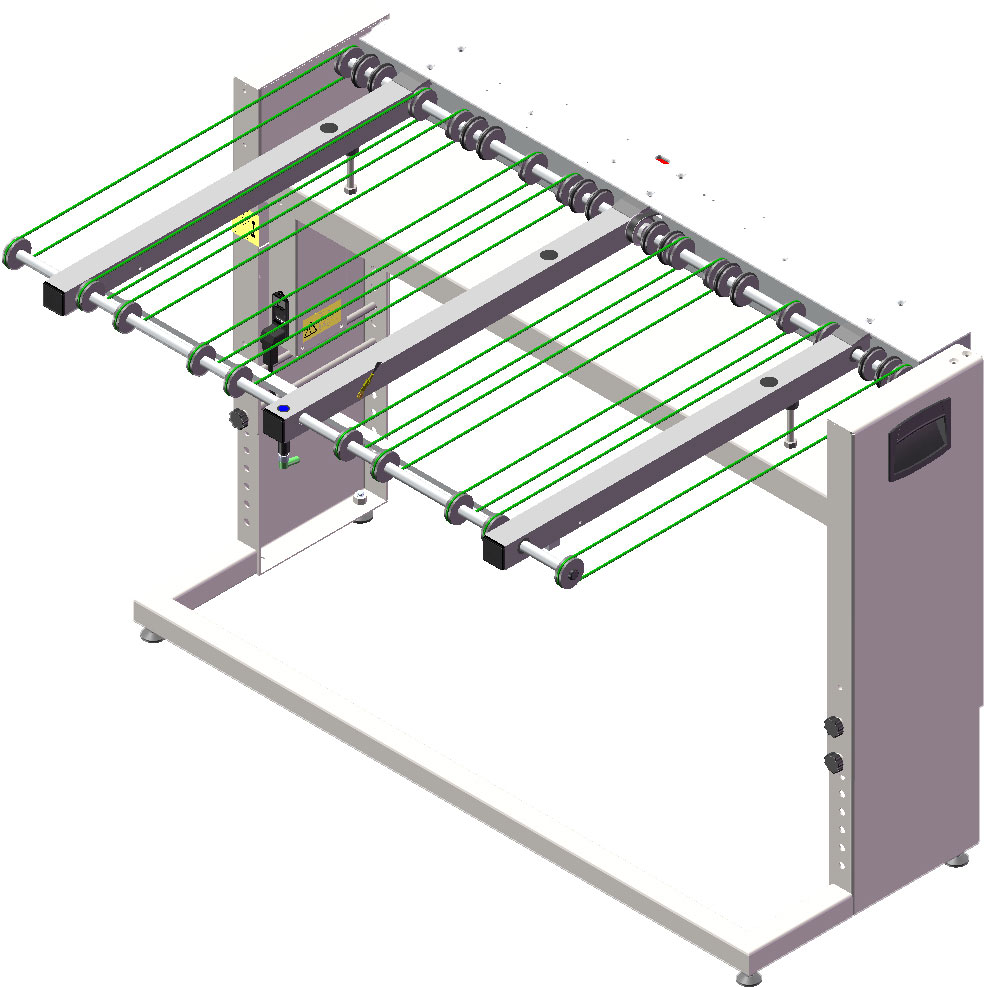

MDT480C800

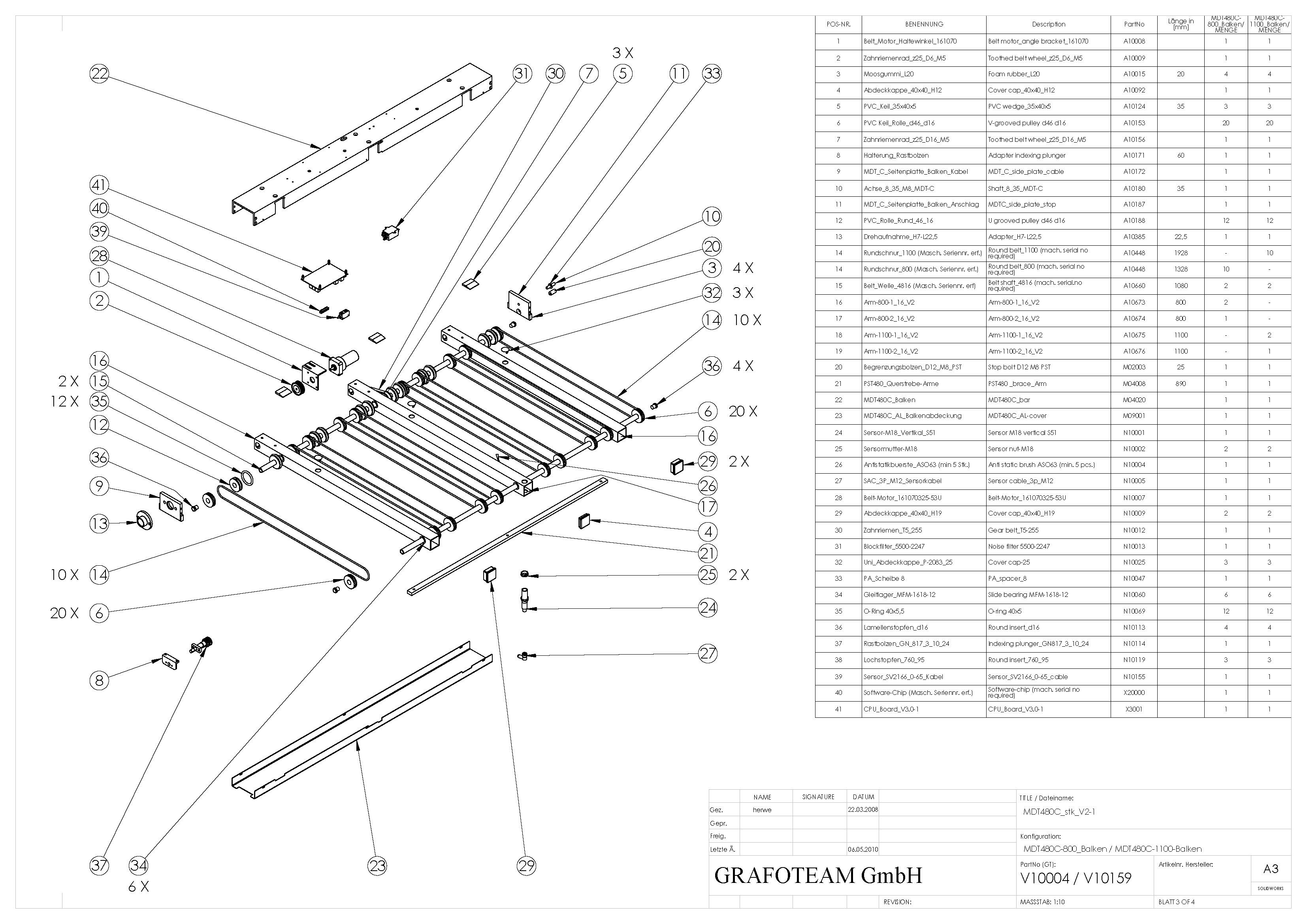

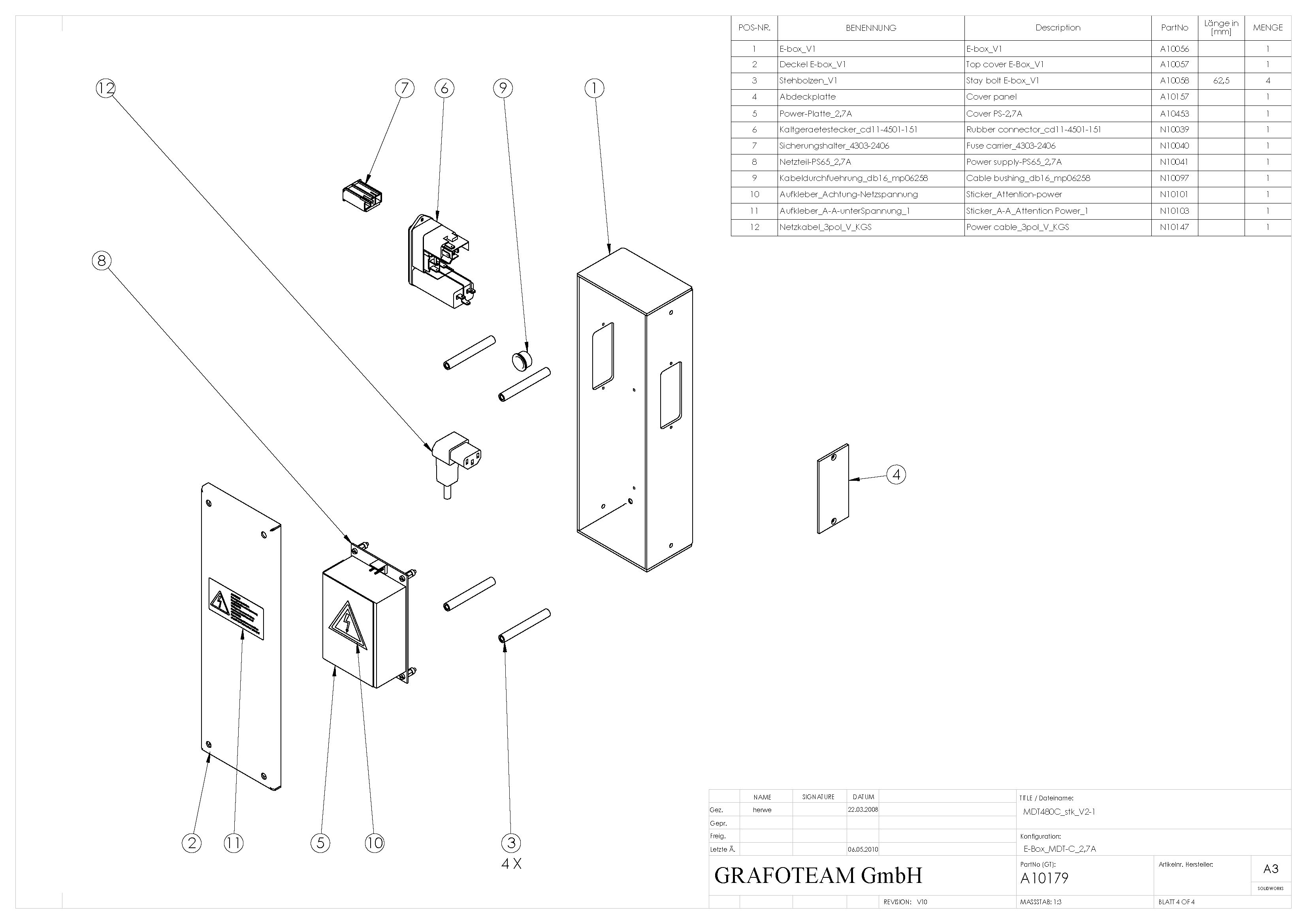

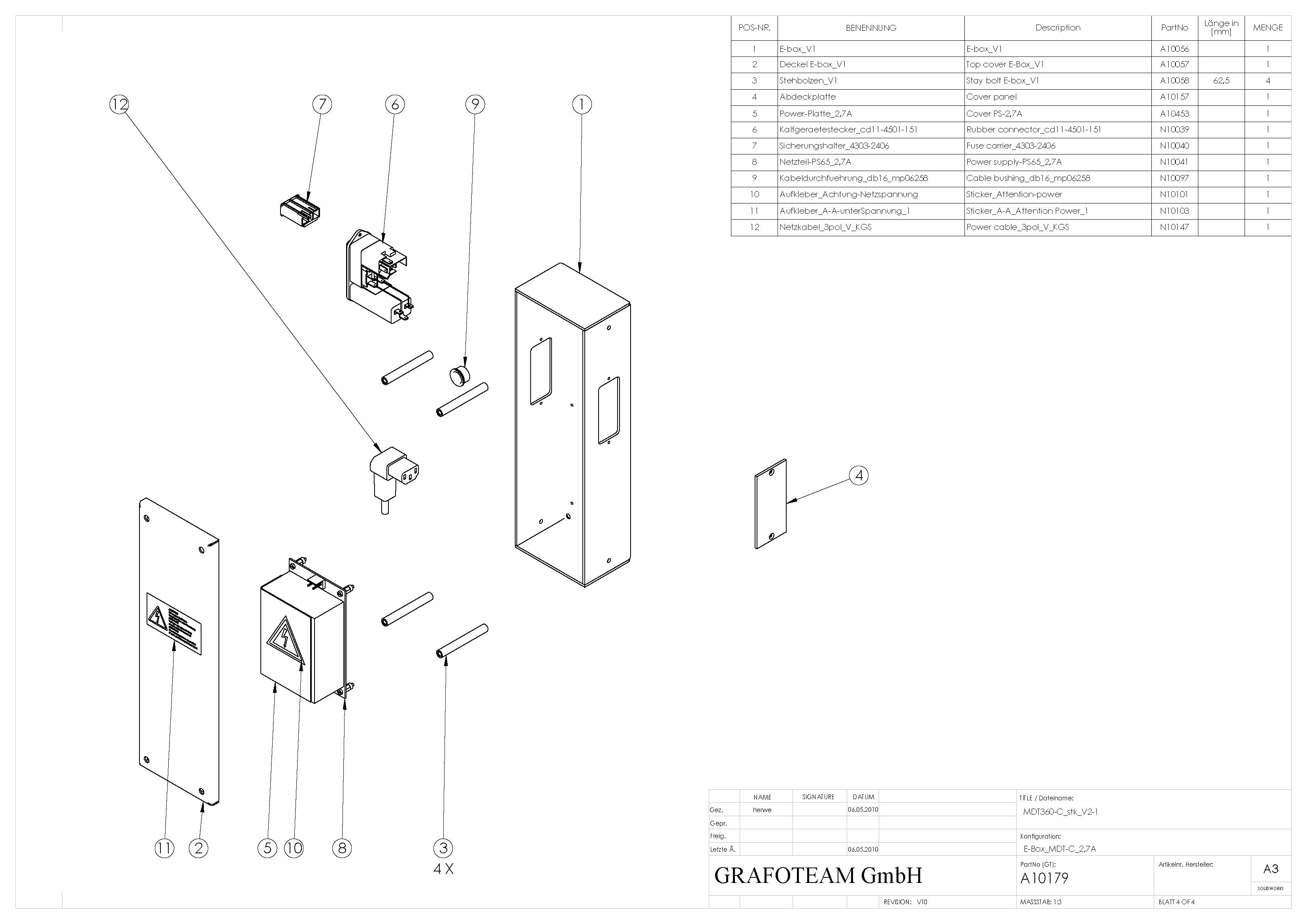

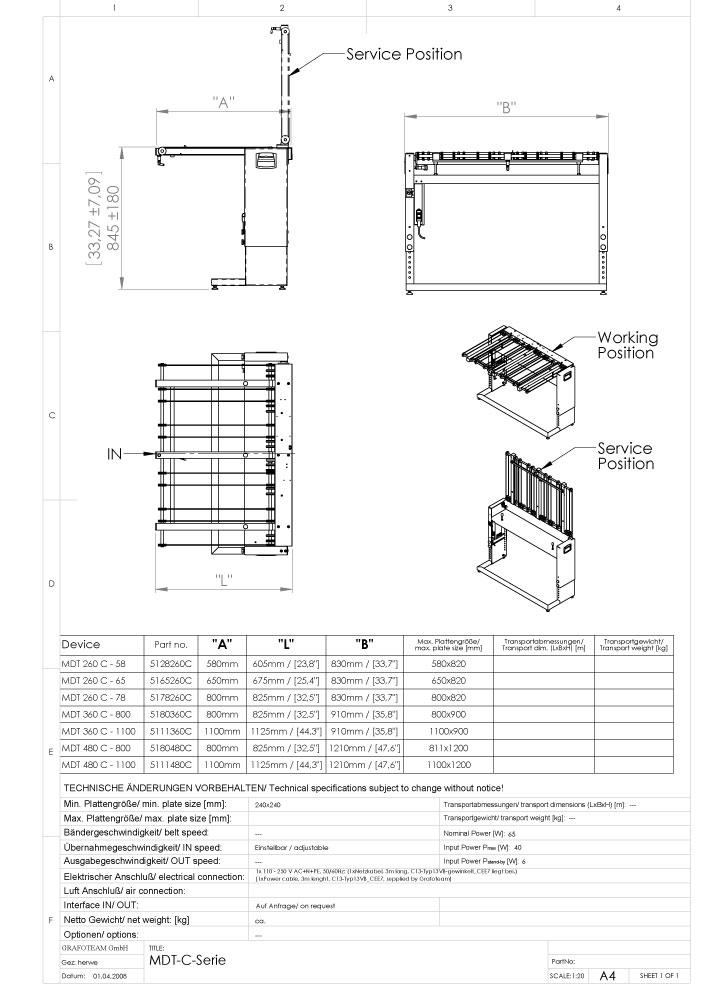

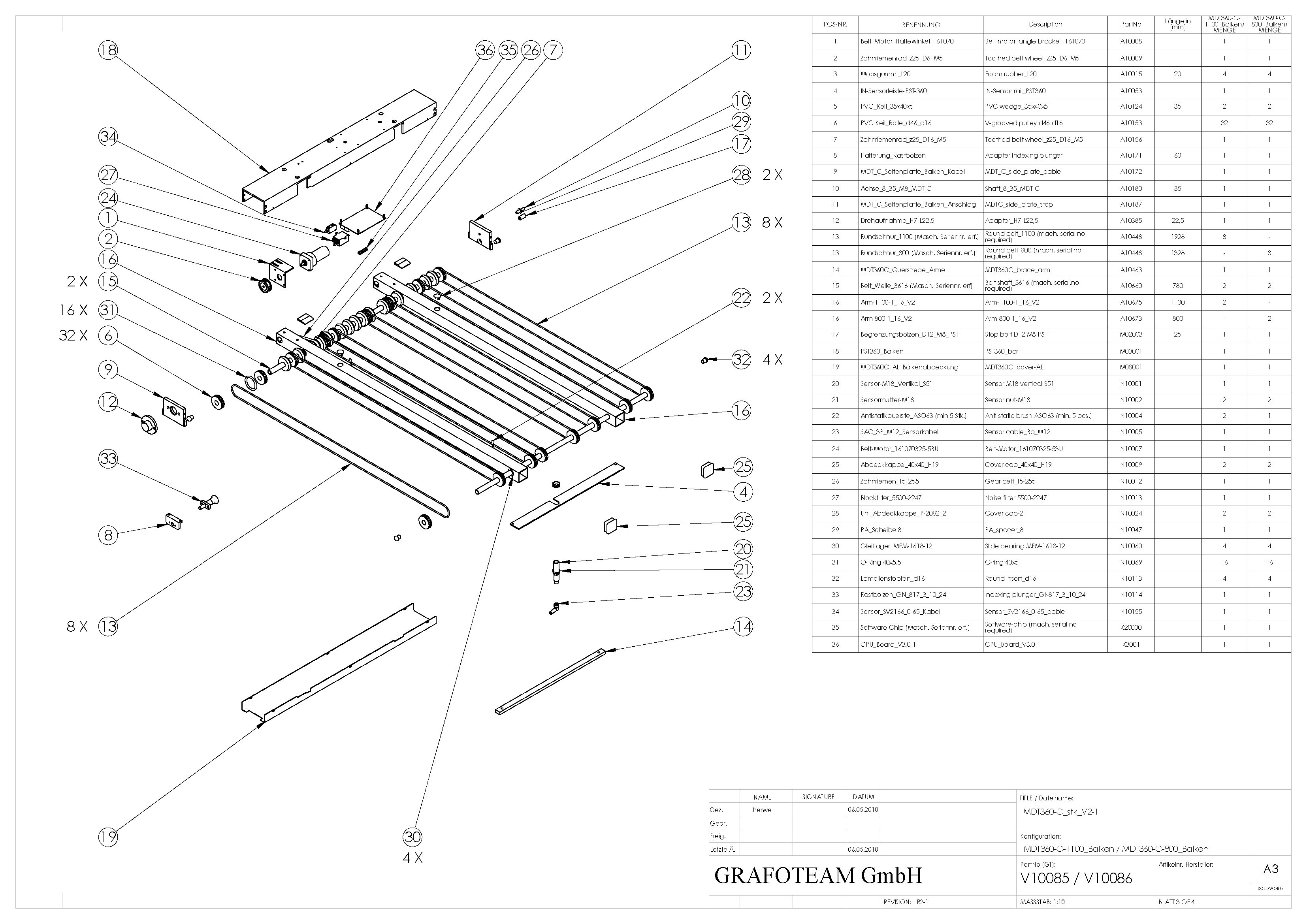

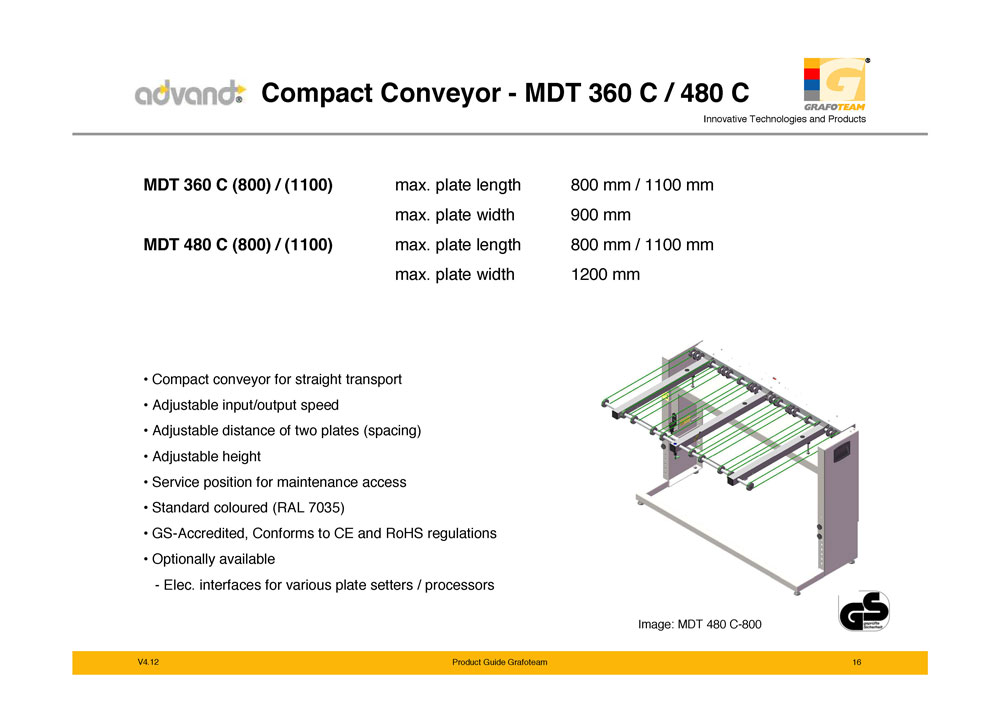

 Compact Conveyor - MDT 360 C / 480 C  Description
 MDT 360 C (800) / (1100), max. plate length 800 / 1100 mm  Technical Drawing
 max. plate width 900 mm  Spare Parts 1 2

 MDT 480 C (800) / (1100), max. plate length 800 / 1100 mm  Spare Parts 1 2
 max. plate width 1200 mm


MDT36B

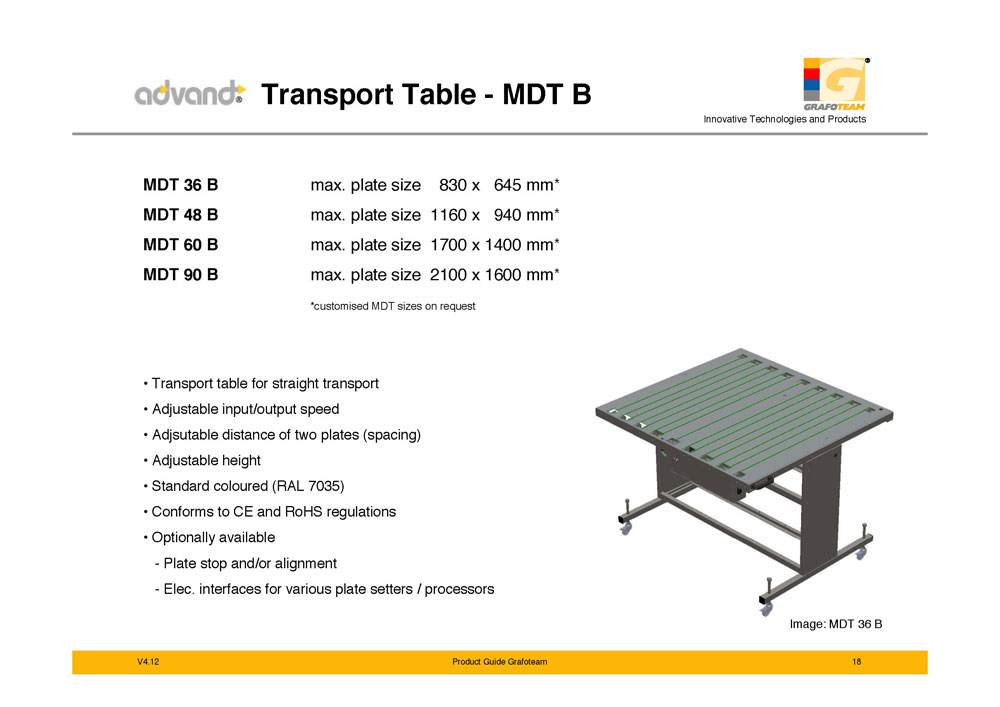

 Transport Table - MDT B  Description

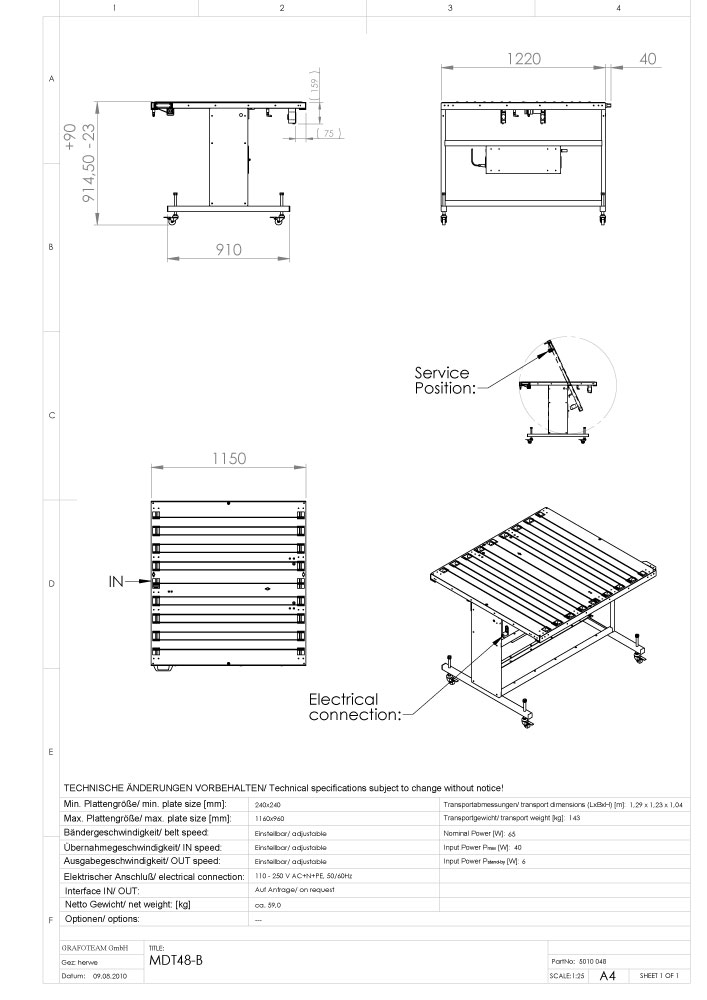

 MDT 36 B, max. plate size 830 x 645 mm*  Technical Drawing
 MDT 48 B, max. plate size 1160 x 940 mm*  Spare Parts
 MDT 60 B, max. plate size 1700 x 1400 mm*
 MDT 90 B, max. plate size 2100 x 1600 mm*
 *customised MDT sizes on request


MDT662B

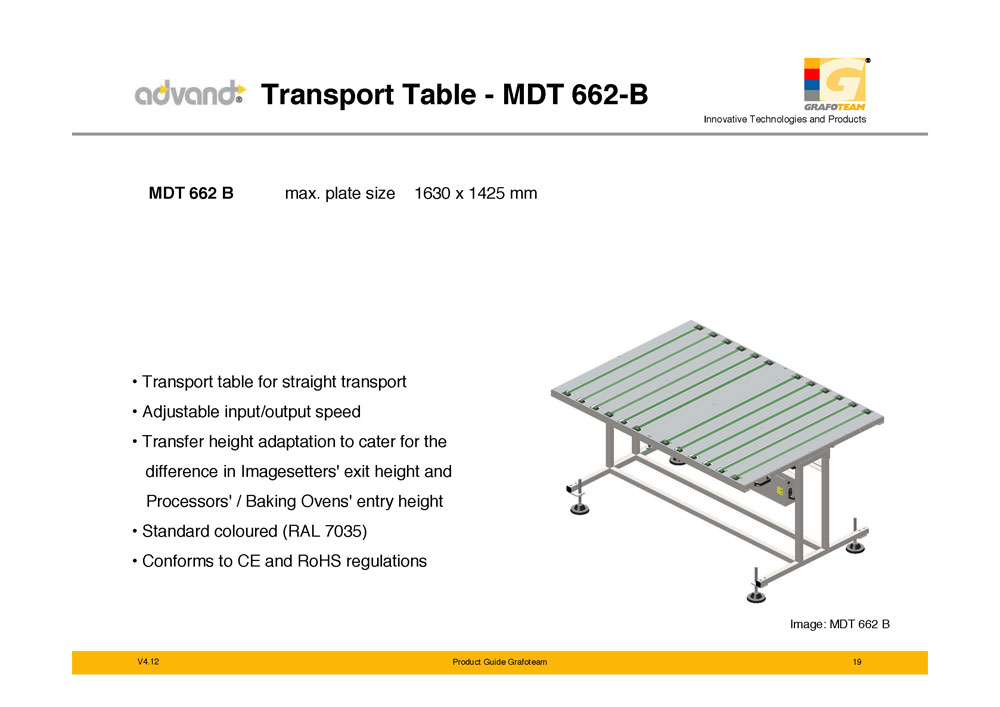

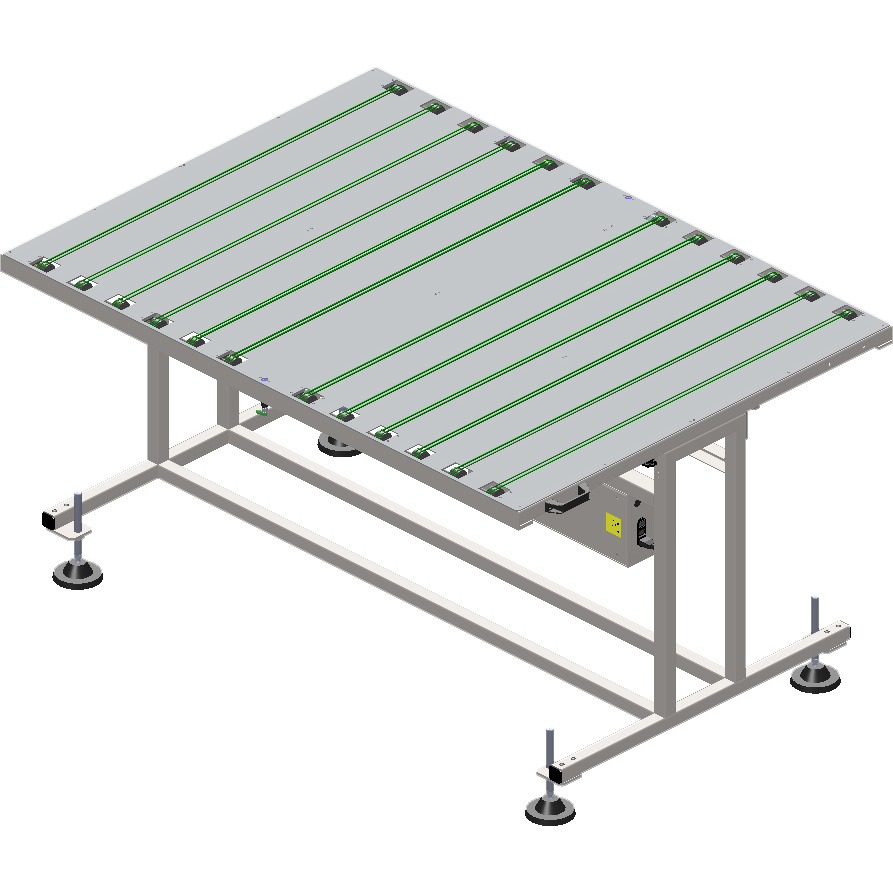

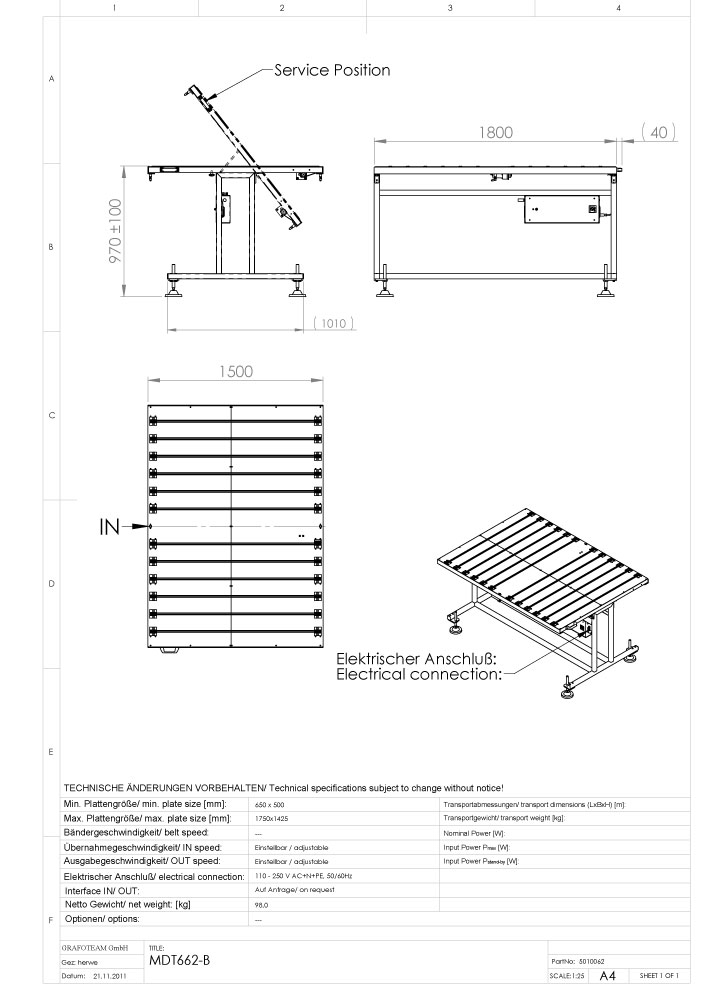

 Transport Table - MDT 662-B  Description
 MDT 662-B, max. plate size 1630 x 1425 mm  Technical Drawing
   Spare Parts





STR1502100

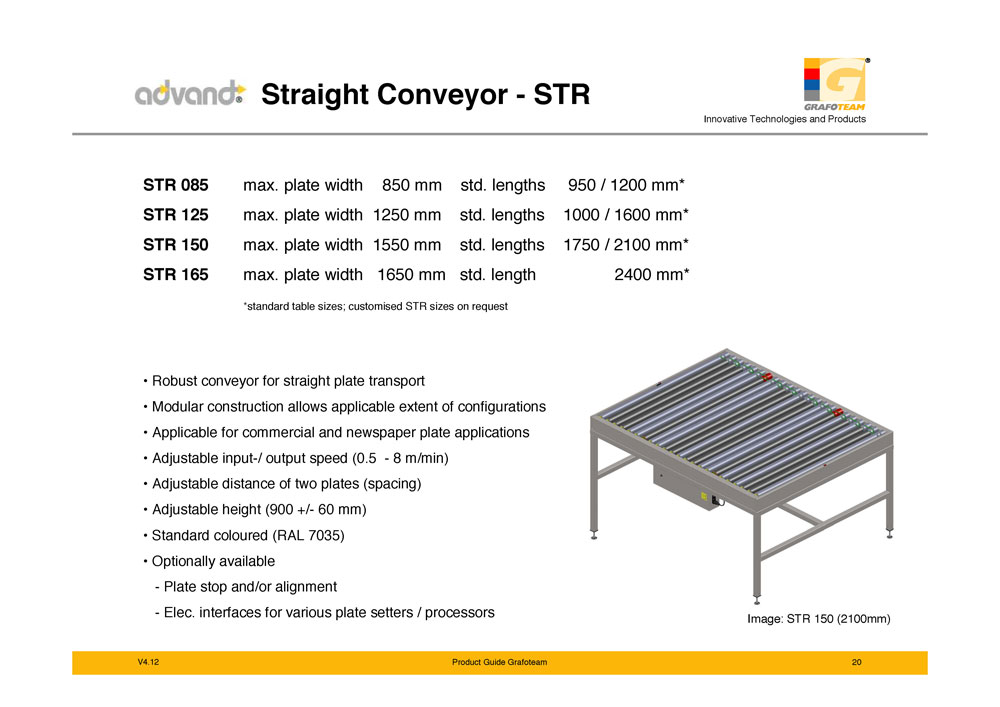

 Straight Conveyor - STR  Description
 STR 085, max. plate w. 850 mm, std. l. 950 / 1200 mm*  Technical Drawing
 STR 125, max. plate w. 1250 mm, std. l. 1000 / 1600 mm*  Spare Parts
 STR 150, max. plate w. 1550 mm, std. l. 1750 / 2100 mm*
 STR 165, max. plate w. 1650 mm, std. l. 2400 mm*
 *standard table sizes; customised STR sizes on request


STRKT

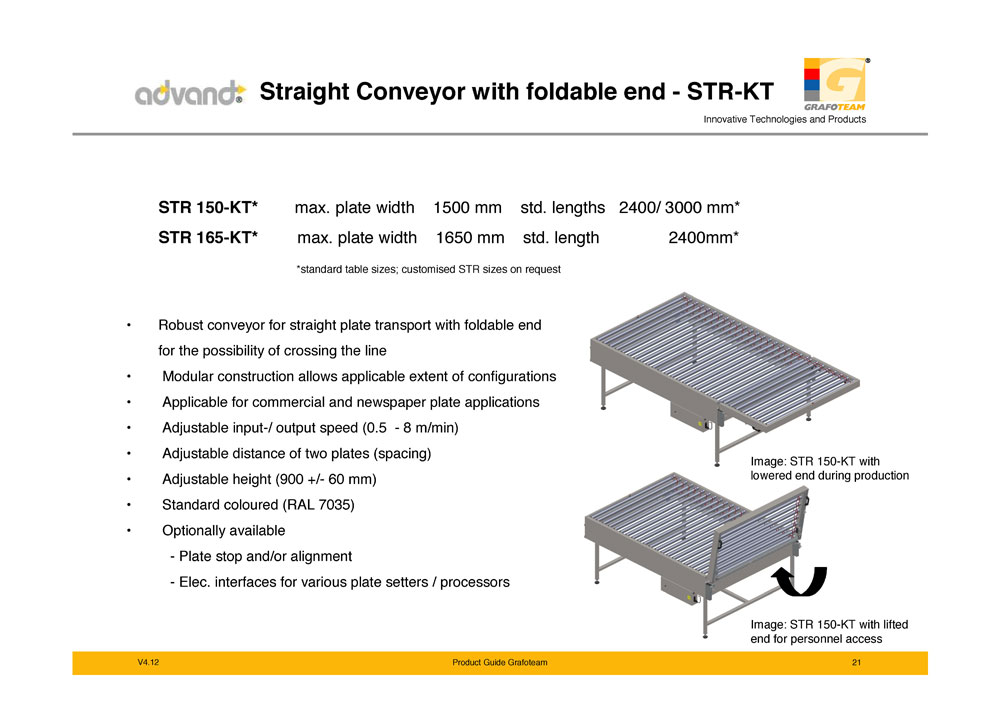

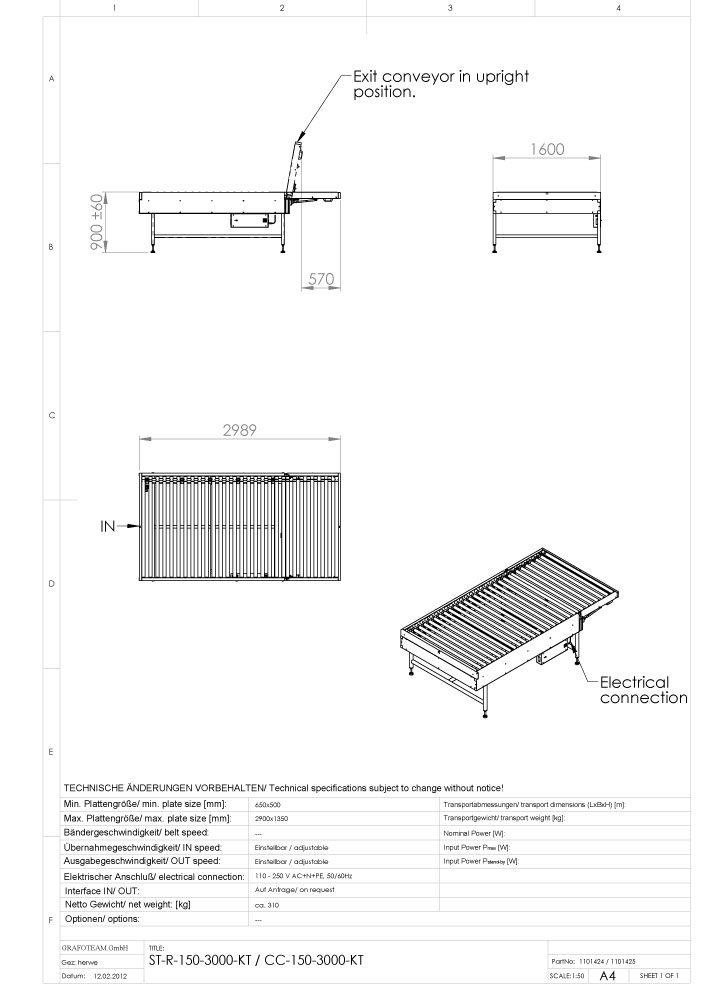

 Straight Conveyor with foldable end - STR-KT  Description
 STR 150 - KT*, max. plate w. 1500 mm, std. l. 2400 / 3000 mm*  Technical Drawing
 STR 165 - KT*, max. plate w. 1650 mm, std. l. 2400 mm*  Spare Parts


 *standard table sizes; customised STR sizes on request


CC1502100

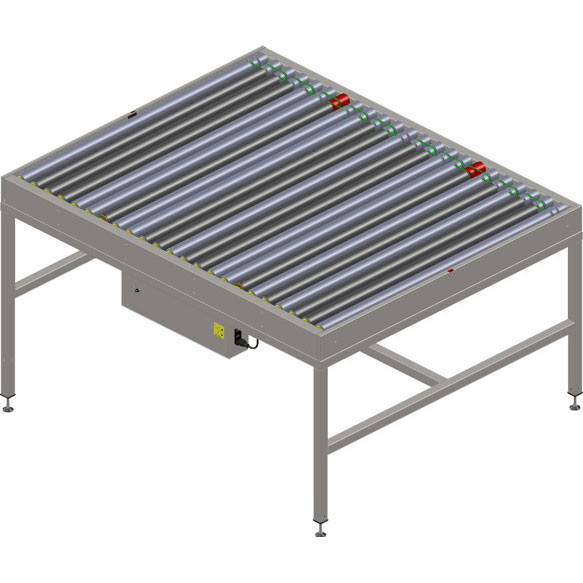

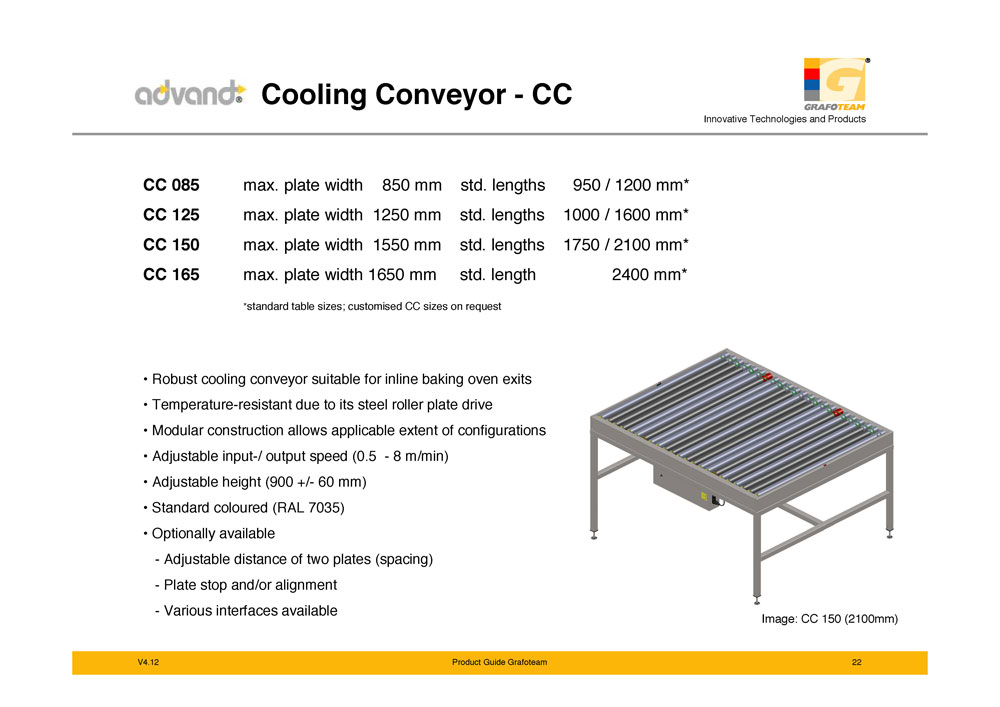

 Cooling Conveyor - CC  Description
 CC 085, max. plate w. 850 mm, std. l. 950 / 1200 mm*  Technical Drawing
 CC 125, max. plate w. 1250 mm, std. l. 1000 / 1600 mm*  Spare Parts
 CC 150, max. plate w. 1550 mm, std. l. 1750 / 2100 mm*
 CC 165, max. plate w. 1650 mm, std. l. 2400 mm*
 *standard table sizes; customised CC sizes on request


CCKT

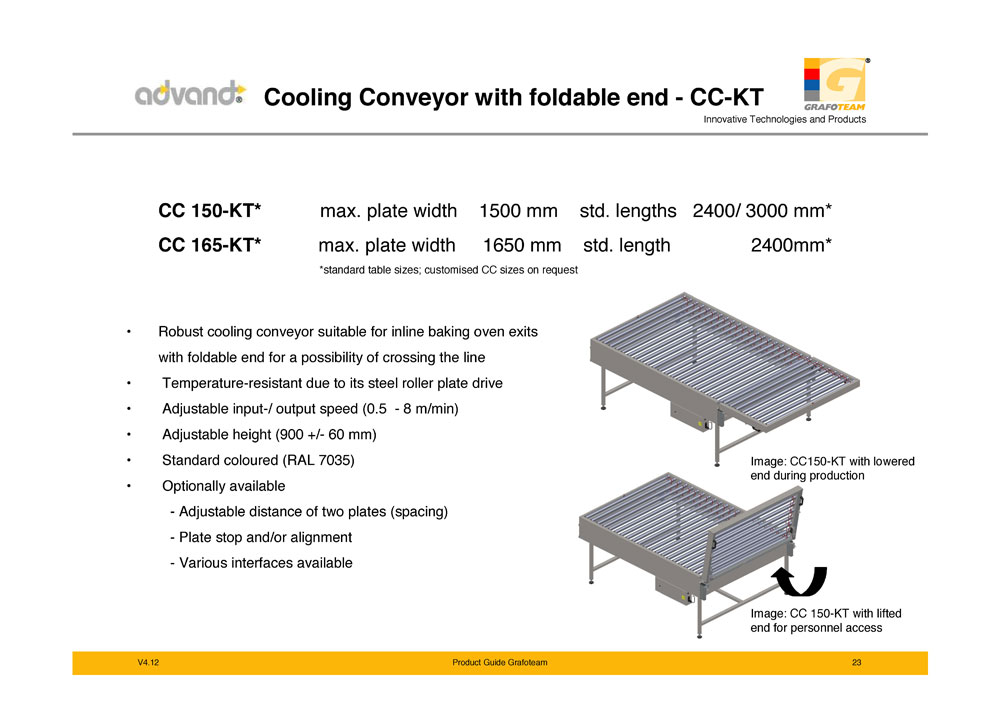

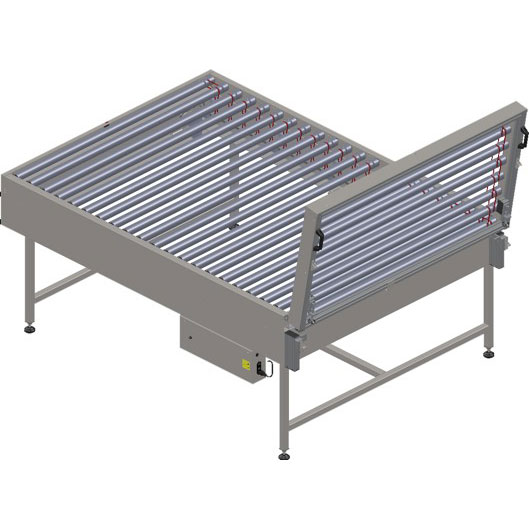

 Cooling Conveyor with foldable end - CC-KT  Description
 CC 150 - KT*, max. plate w. 1500 mm, std. l. 2400 / 3000 mm*  Technical Drawing
 CC 165 - KT*, max. plate w. 1650 mm, std. l. 2400 mm*  Spare Parts


 *standard table sizes; customised CC sizes on request
